K4/M30 Crash Rated Bollard

K4/M30 Crash Rated Bollard

Quote for K4/M30 Crash Rated Bollard
For Accurate Shipping Quotes

Lead Time: 4+ weeks (depending on availability)

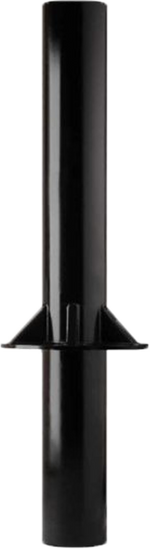

The K4/M30 Bollard is a crash-rated safety barrier engineered to protect storefronts, pedestrian zones, and high-traffic areas from vehicle impact. Tested and certified to ASTM F2656-07 M30 P1 standards, this bollard successfully stops a 15,000 lbs. vehicle traveling at 30 mph, providing reliable perimeter security for retail environments, public spaces, and sensitive infrastructure.

Constructed from heavy-duty 8" U.S. steel, the K4 is available in Set & Pour and Shallow Mount options, both offering exceptional strength and durability in a compact footprint. Its robust design makes it ideal for locations requiring both security and aesthetic appeal. Perfect for storefront protection, event barriers, and crowd control applications where crash resistance is essential.

The K4 Bollard combines certified safety performance with industrial-grade construction to safeguard people and property.
  • Made from 8" x 72" U.S. steel bollard prime paint coated in black or red
  • K4 Bollard includes 8" Bollard Cover of your choice
  • Includes 2 pieces of rebar
  • Designed to stop 15,000 lbs. vehicle at 30 mph with one-meter of penetration
  • Tested and certified with ASTM F2656-07 M30 P1 rating
  • Unrestricted spacing limit while maintaining ASTM M30 P1 certification
  • Approved by Department of Defense
  • Listed on Anti-Ram Vehicle Barrier List
  • Set & Pour or Shallow Mount applications available
  • Field adjustable to fit exact needs; unrestricted spacing limit
  • For specific lead time info, give us a call
  • Bollards are fabricated and shipped from multiple U.S. locations
  • Lead times depend on quantity and availability
  • Lift gates or on-site forklifts needed to unload steel

FAQs - K4/M30 Crash Rated Bollard

The K4 Bollard is tested and certified with ASTM F2656-07 M30 P1 rating, these security bollard barriers have been approved by the Department of Defense (DoD) and are now listed on the Anti-Ram Vehicle Barrier List.

The K4/M30 Bollards are Department of Defense approved, crash certified protection bollards that are designed to stop 15,000 lbs. vehicles at 30 mph within one-meter penetration. Available in both Set & Pour or Shallow Mount applications as well as fixed or removable options, the K4 Bollards can protect just about any location as they have an unrestricted spacing limit while maintaining ASTM M30 P1 certification.

The K4 and K12 Bollards are prime paint coated in red or black. We suggest finishing with a Bollard Cover to improve aesthetics and eliminate future painting costs.

With the K4 Bollard being an 8" pipe, any of our 8" or larger Bollard Covers can fit the pipe. For 10" or 12" options, we offer steel inserts to help the sleeves fit better. Ask for more information.
